المعتمد C-TEC توفر شركه ماس للانظمه المتقدمة والتوريدات العامة نظام استدعاء الممرضات
نحن نقدم حلولًا تعمل على تحسين الاتصال بين المرضى ومقدمي الرعاية لهم مما يؤدي إلى أوقات استجابة أسرع وتخصيص أكثر كفاءة للممرضات وإدارة أفضل بشكل عام. لمزيد من المعلومات يرجى مراسلتنا عبر البريد الإلكتروني
Overview

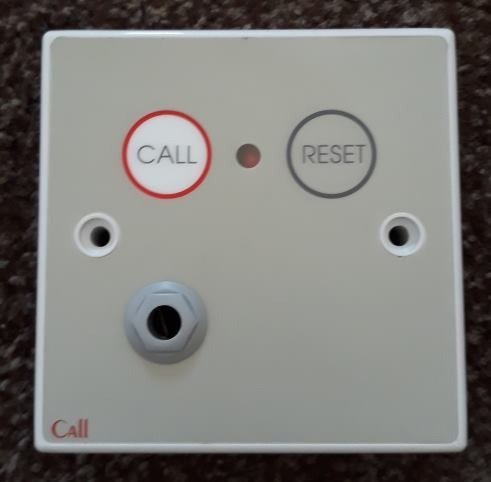

An attractively designed button-operated call/reset point capable of generating Standard calls on an 800 Series Call
System.
Includes a 6.35mm jack plug socket for the connection of an optional tail call lead, pressure mat or other ancillary caling
device.
Red reassurance LED confirms a call has been made.
Onboard reset button cancels calls made from the NC802DB and standard calls made from other devices wired on the
same zone (such as ceiling pull units in Ensuite areas).
Mounts on a standard UK 25mm single gang flush or surface back box.
Quiescent current
0mA (none).
Alarm current
Determined by the type of control equipment and number / type of field devices
connected to the system.
Indicators
Red Reassurance LED (lit constant for Standard calls)
Controls
Call button (generates Standard calls only); Reset button (cancels Standard calls
from the NC802DB and Standard calls from other devices wired on the same
Zone).
Connections
SIG (Signal); -Ve (Negative); RC (for the optional connection of an NC807C
ceiling pull unit.
Expansion connections
Yes. For an optional NC807C ceiling pull unit.
Onboard Sounder
Yes. For optional tail call leads, floor pressure mats, air switches etc.
Onboard Infrared Receiver
No.
Product dimensions (mm)
87 W x 87 H x 32 D mm. Mounts on a UK 25mm single gang back box.
Construction & finish
Plastic.
IP Rating
IP20.
Weight
64g.
