MAS for advanced systems

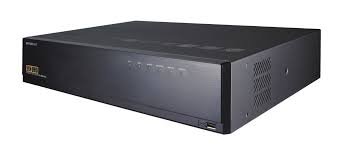

Model Name/Number XRN-2010A
Type NVR
Minimum Order Quantity 1
Brand Samsung/HANWHA/wisenet
Description
• Up to 32 channels, Maximum 12 MP Cameras supported
• 256Mbps network camera recording
• 4K video out on HDMI monitor support
• Dual monitor video out support
• H.265, H.264, MJPEG compression support
• WiseStream support
• Max. 8 internal HDDs (48TB), e-SATAT / iSCSI storage support
• ARB & Failover (N+1) support
• P2P service (QR code connect) support
DISPLAY
Video Inputs Up to 32 Channels
Resolution CIF ~ 12 MP
Protocols Wisenet, ONVIF
Live Local Display 1x HDMI, 1x VGA dual monitor, Expand/Clone modes
Multi Screen Display [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web]
1 / 4 / 9 / 16 / 25 / 36 / Sequence
Performance [Local monitor] 12 MP (30fps), 8.3 MP (120fps), 1080p (480fps),
720P (960fps), D1 (960fps)
PERFORMANCE
Operating System Embedded Linux
Recording Compression H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth Maximum 256Mbps
Resolution CIF ~ 12 MP
Mode Normal, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger Alarm input, Video loss, Camera event (Sensor, MD, Video analytics
Storage Built-in / Internal HDD 0TB ~ 6TB / 8 HDDs (Maximum 48TB)
External iSCSI storage (Maximum 384TB), Promise VessRaid R2600
| Brand | Samsung/Hanwha/Wisenet |
| Shipping Cost |
|
| Shop Location | 28 متولي الشعراوي امتداد مهدي عرفة بجوار مستشفى الماسة الحي العاشر مدينة نصر, Cairo, Egypt |
