MAS for advanced system
Model Name/Number MIX-2251AP
Type Addressable
Minimum Order Quantity 1
Brand Mircom
Description
Mircom's low profile intelligent plug-in smoke detectors with integral communications provide features that surpass conventional detectors. Sensitivity is continuously monitored and reported to the panel where the desired detector sensitivity can be programmed. Point ID capability allows each detector’s address to be set with decade address switches, providing exact detector locations for selective maintenance when chamber contamination reaches an unacceptable level.
Mircom’s Advanced Protocol (AP) devices use a high speed communication protocol that greatly increases the speed of communication between the intelligent devices. Mircom’s Advanced Protocol uses a superior group polling method as well as an interrupt feature that provide for a faster response to an alarm condition. In addition, the Advanced Protocol allows for greater system capacity with support for up to 318 devices per SLC circuit. The AP devices are backwards compatible to operate in CLIP mode for legacy system applications.

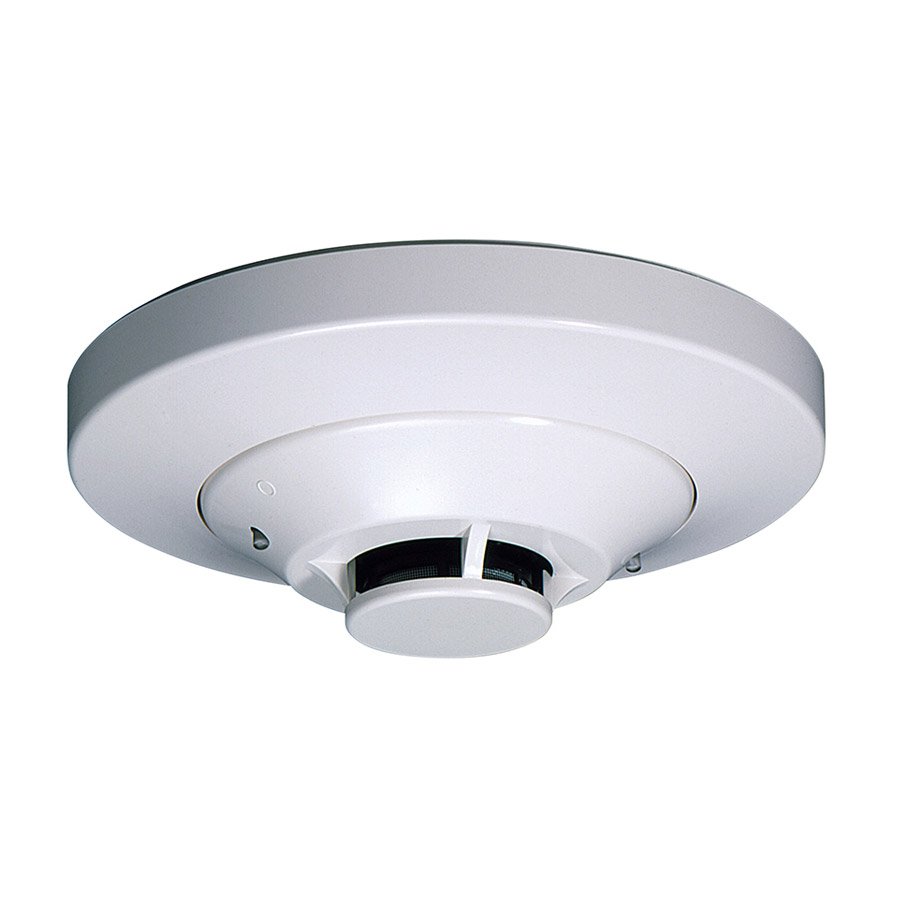

MIX-2251AP Intelligent Photoelectric Smoke Sensor
The MIX-2251AP provides a unique optical sensing chamber that senses smoke produced by a wide range of combustion sources.
Features
•Sleek, low profile design
•Photoelectric technology
•Available with additional fixed temperature
detection
•Dual LEDs indicate communications and activate steady when in alarm
•Low profile base provides easy interchangeability
•Low standby current
•Rotary switches for direct-dial entry of address. Each unit can have address set for 01-159 for Advanced Protocol mode and 01-99 for CLIP mode
•Magnetic test feature
•Superior EMI protection
•Sealed against dirt, insects, and back pressure
MIX-2251TAP Intelligent Photoelectric Smoke Sensor with 135°F Fixed Temperature Heat Detector The MIX-2251TAP adds dual electronic thermistors to the MIX-2251AP to provide 135°F (57°C) fixed temperature thermal sensing.
MIX-2251TMAP Intelligent AcclimateTM Multicriteria Smoke Sensor
The MIX-2251TMAP is a photoelectric smoke detector with supplementary 135°F thermal. Also known as Acclimate™, it uses advanced on-board software to combine the signals from the photo and thermal elements. The MIX-2251TMAP is a true multicriteria detector capable of rejecting nuisance sources, but still responding quickly to real fires. Acclimate has the capability of adjusting its sensitivity according to the type of environment that it is installed in.and
rate-of-rise thermal detection. These thermal detectors provide cost effective, intelligent property protection in a variety of applications.
MIX-2251AP Intelligent Photoelectric Smoke Sensor
The MIX-2251AP provides a unique optical sensing chamber that senses smoke produced by a wide range of combustion sources.
| Brand | Mircom |
| Shipping Cost |
|
| Delivery Time | Ready to ship in 2-3 Business Days |
| Shop Location | 28 متولي الشعراوي امتداد مهدي عرفة بجوار مستشفى الماسة الحي العاشر مدينة نصر, Cairo, Egypt |
