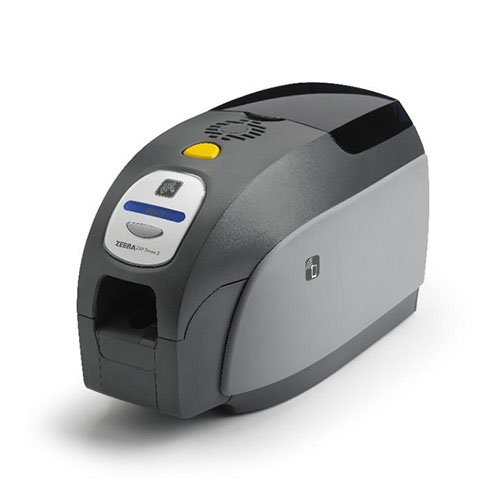

ZXP Series 3 Card Printer
Zebra’s ZXP Series 3™ direct-to-card printer provides an array of features, outstanding print quality, and a low cost
of ownership. The ZXP Series 3 offers a wide range of high capacity ribbon options, along with the capability
to select the card thickness that is right for the application. And, when paired with Zebra’s eco-friendly media,
the ZXP Series 3 is the most cost-effective printing solution in its class
The printer’s compact design makes it the right choice for tight
work spaces. Smart card and magnetic stripe encoding options
allow the ZXP Series 3 to meet the needs of a variety of markets
and applications, including ID and access control cards as well
as personalized gift, membership and loyalty cards. Standard
Kensington™ lock feature and optional enclosure lock make the
ZXP Series 3 ideal for secure card printing solutions.
Print Touch
The ZXP Series 3 includes Zebra® Print Touch™, an embedded Near
Field Communication (NFC) chip and software. Just hold your NFC
enabled smartphone up to the Zebra Print Touch logo on the printer
to read key printer information and launch web-based help pages.
Genuine Zebra Supplies
Genuine Zebra supplies meet stringent quality standards and
are recommended for optimal printing quality and proper printer
performance.
STANDARD FEATURES
• True Colours® ix Series™ ZXP 3 high-performance ribbons with intelligent
media technology
• High capacity, eco-friendly Load-N-Go™ drop-in ribbon cartridges
• ZRaster™ host-based image processing
• Auto calibration of ribbon
• USB connectivity
• Microsoft® Certified Windows® drivers
• Print Touch NFC tag for online printer documentation and tools
• 100 card covered feeder (30 mil)
• 45 card capacity output hopper (30 mil)• 16-character LCD operator control display
• 300 dpi (11.8 dots/mm) print resolution
• Two-year warranty on printer
• Two-year (unlimited passes) original printhead
• One-year hot swap (U.S. only)
PRINTING SPECIFICATIONS
Dye-sublimation thermal transfer direct to card
Full color or monochrome printing
Single- or dual-sided printing
700 cards / hour monochrome single-sided
195 cards / hour single-sided YMCKO
140 cards / hour dual-sided YMCKOK
Edge-to-edge printing on standard CR-80 media
MEDIA SPECIFICATIONS
NOTE: The ZXP Series 3 printer is designed to work only with Zebra True
Colours ix Series high-performance ribbons
Zebra intelligent technology automatically detects and authenticates ribbon
Integrated cleaning roller included with each ribbon
Media Starter Kit (single-sided): 1 YMCKO ribbon, 200 30-mil PVC cards
Specially designed cleaning supplies simplify preventive maintenance
True Colours ix Series ZXP 3 Ribbons
• YMCKO: 280 images/roll
• ½ YMCKO: 400 images/roll
• YMCKOK: 230 images/roll
• KdO: 700 images/roll
• KrO: 700 images/roll
• Black Monochrome: 2000 images/roll
• Red Monochrome: 1700 images/roll
• Blue Monochrome: 1700 images/roll
• Gold Monochrome: 1600 images/roll
• Silver Monochrome: 1600 images/roll
• White Monochrome: 1400 images/roll
Card Compatibility
For optimum card quality and printer performance, use genuine Zebra card
supplies. For more information, visit www.zebra.com/cards.
• Card Thickness: 10-40 mil
• Card Size: CR-80, ISO 7810 format, Type ID-1
• Card Material: PVC and PVC composite
• Smart Card Contact — ISO 7816-1,2,3,4
• Smart Card Contactless MIFARE® ISO 14443A/B
• Spot color or monochrome print only on < 20 mil card thickness
| Brand | ZEBRA |
| Shipping Cost |
|
| Delivery Time | Ready to ship in 1 Business Day |
| Shop Location | 28 متولي الشعراوي امتداد مهدي عرفة بجوار مستشفى الماسة الحي العاشر مدينة نصر, Cairo, Egypt |
