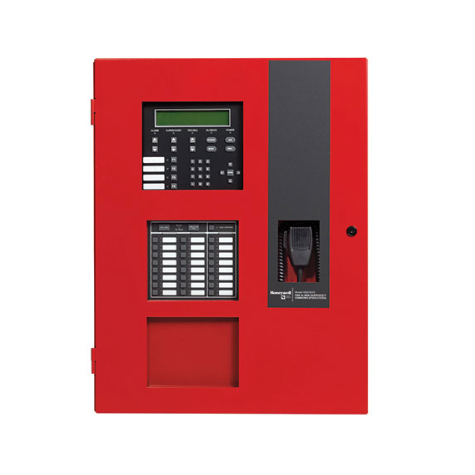

Model Name/Number IFP-2100 / IFP-2100B
Type Addressable
Minimum Order Quantity 1
Brand honeywell
Description
IFP-2100 / IFP-2100B / RFP-2100 / RFP-2100B Scalable Analog/Addressable Fire Alarm Control System The IFP-2100 (red) and IFP-2100B (black) are intelligent analog/ addressable Fire Alarm Control Panels (FACP). The basic IFP-2100 panel contains one built in signaling line circuit (SLC), which can support 159 System Sensor® IDP/SK sensors and 159 IDP/SK modules or 127 Hochiki® SD devices per loop. Additional SLC loops can be added using the model 6815 SLC expander for IDP/SK devices to increase the overall point capacity to 2100 or model 5815XL for SD devices to increase the overall point capacity to a maximum to 2032 points per panel. IFP-2100 has the interconnection capability for up to 32 panels. The system has two modes of operation, multiple panels covering one larger building, or multiple independent buildings. The RFP-2100 (red) or RFP-2100B (black) can be used in a networked system where at least one IFP-2100 is in the system. It is the same as the IFP-2100 without the display. IFP-2100 has eight on-board Flexput™ circuits that can be configured for auxiliary power, notification outputs, or for conventional smoke detector inputs (Class A or Class B). The FACP also has a Built in dual phone line digital alarm communicator/transmitter (DACT), IP or optional cellular technologies, Form C trouble relay, and two programmable Form C relays. IFP-2100 has powerful features such as detector sensitivity, day/night thresholds, drift compensation, pre-trouble maintenance alert, and calibration trouble alert
| Brand | Honeywell |
| Shipping Cost |
|
| Delivery Time | Ready to ship in 2-3 Business Days |
| Shop Location | 28 متولي الشعراوي امتداد مهدي عرفة بجوار مستشفى الماسة الحي العاشر مدينة نصر, Cairo, Egypt |
